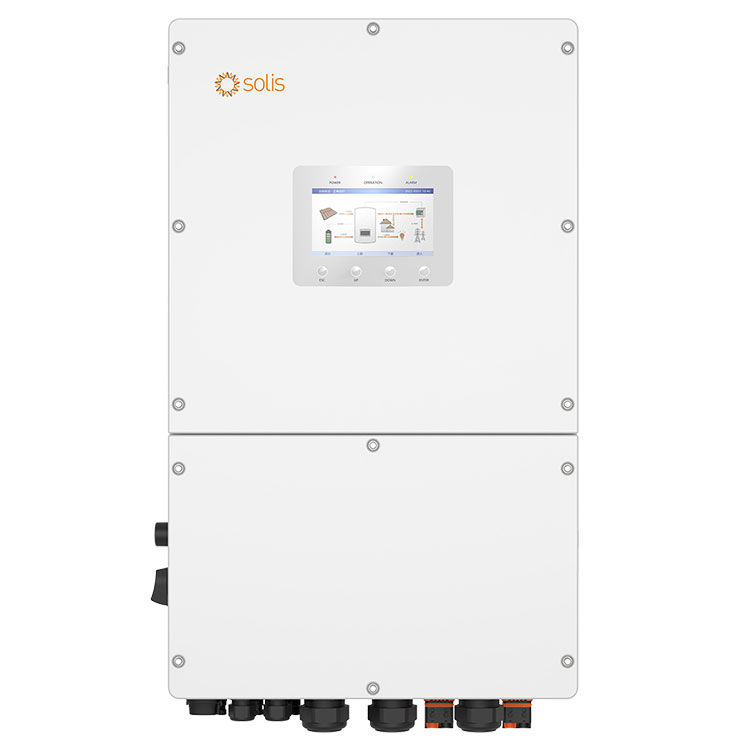

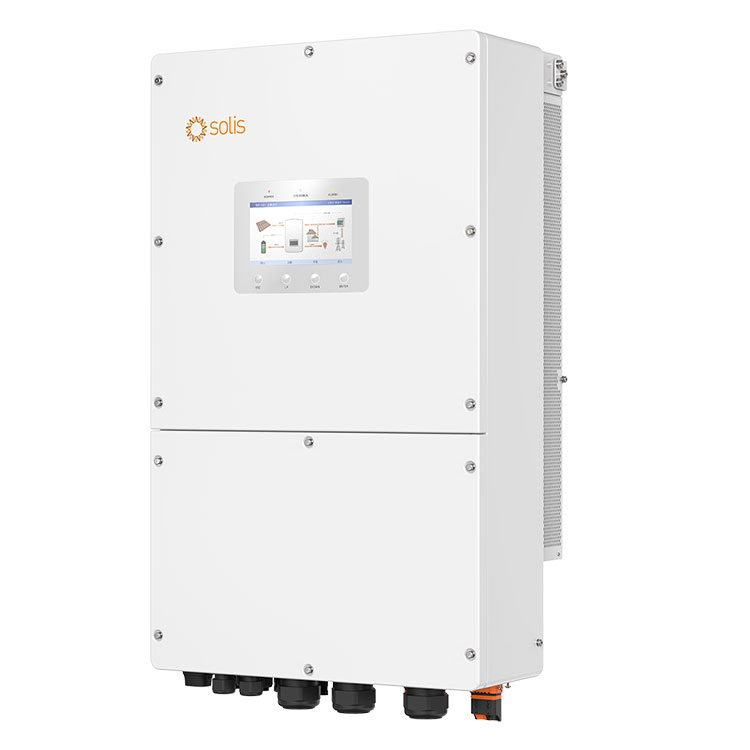

      Solis Three Phase High Voltage Energy Storage Inverters

      Detail

      Features:

      4 MPPTs, 8 strings at 20A, and up to 96kW usable PV input

      140A/70A+70A max charge/discharge on two independently controlled ports

      Supports 1.6 times rated output for 2 seconds on the backup port

      Supports parallel operation of up to 6 units for on and off-grid use

      Operates as a grid-tied inverter without batteries when on-grid

      Multi-input generator connectivity with automatic on/off control

      Supports peak shaving control in both "self-use" and "generator" mode


      Models:

      S6-EH3P30K-H-LV

      S6-EH3P29.9K-H / S6-EH3P30K-H

      S6-EH3P40K-H / S6-EH3P50K-H


      DATASHEET

      Models 30K-LV 29.9K 30K 40K 50K
      Input DC (PV side)
      Recommended max. PV array size 60 kW 59.8 kW 60 kW 80 kW 100 kW
      Max. usable PV input power 60 kW 59.8 kW 60 kW 80 kW 96 kW
      Max. input voltage 1000 V
      Rated voltage 600 V
      Start-up voltage 180 V
      MPPT voltage range 150-850 V
      Max. input current 3*40 A 4*40 A
      Max. short circuit current 3*60 A 4*60 A
      MPPT number/Max. input strings number 3/6 4/8
      Battery
      Battery type Li-ion
      Battery voltage range 150-800 V
      Max. charge / discharge power 33 kW 32.1 kW 33 kW 44 kW 55 kW
      Max. charge / discharge current 70 A*2 (1)
      No. of battery inputs 2
      Max. charge / discharge power of each input 33 kW 32.1 kW 33 kW 40 kW 40 kW
      Communication CAN/RS485
      Output AC (Grid side)
      Rated output power 30 kW 29.9 kW 30 kW 40 kW 50 kW
      Max. apparent output power 30 kVA 29.9 kVA 30 kVA 40 kVA 50 kVA
      Rated grid voltage 3/N/PE, 127 V / 220 V
      3/N/PE, 133 V / 230 V       		3/N/PE, 220 V / 380 V
      3/N/PE, 230 V / 400 V
      Rated grid frequency 50 Hz / 60 Hz
      Rated grid output current 78.7 A / 75.3 A 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
      Max. output current 78.7 A / 75.3 A 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
      Power factor >0.99 (0.8 leading - 0.8 lagging)
      THDi < 3%
      Input AC (Grid side)
      Max. AC passthrough current 152 A / 152 A 90.8 A / 86.4 A 91.2 A / 86.6 A 121.6 A / 115.4 A 152 A / 144.4 A
      Rated input voltage 3/N/PE, 127 V / 220 V
      3/N/PE, 133 V / 230 V       		3/N/PE, 220 V / 380 V
      3/N/PE, 230 V / 400 V
      Rated input frequency 50 Hz / 60 Hz
      Input Generator
      Max. input power 30 kW 29.9 kW 30 kW 40 kW 50 kW
      Rated input current 78.7 A / 75.3 A 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
      Rated input voltage 3/N/PE, 127 V / 220 V
      3/N/PE, 133 V / 230 V       		3/N/PE, 220 V / 380 V
      3/N/PE, 230 V / 400 V
      Rated input frequency 50 Hz / 60 Hz
      Output AC (Back-up)
      Rated output power 30 kW 29.9 kW 30 kW 40 kW 50 kW
      Max. apparent output power 1.6 times of rated power, 2 s
      Back-up switch time < 10 ms
      Rated output voltage 3/N/PE, 127 V / 220 V
      3/N/PE, 133 V / 230 V       		3/N/PE, 220 V / 380 V
      3/N/PE, 230 V / 400 V
      Rated frequency 50 Hz / 60 Hz
      Rated output current 78.7 A / 75.3 A 45.4 A / 43.2 A 45.6 A / 43.3 A 60.8 A / 57.7 A 76 A / 72.2 A
      THDv (@linear load) < 2%
      Efficiency
      Max. efficiency 97.8%
      EU efficiency 97.4%
      BAT charged by PV Max. efficiency 98.5%
      BAT charged/discharged to AC Max. efficiency 97.5%
      Protection
      Anti-islanding protection Yes
      Output over current protection Yes
      Short circuit protection Yes
      Integrated DC switch Optional
      DC reverse-polarity protection Yes
      Surge protection DC Type II / AC Type II
      Integrated AFCI (DC arc-fault circuit protection) Yes (2)
      General Data
      Dimensions (W*H*D) 530*880*290 mm
      Weight 73 kg
      Topology Non-isolated
      Self-consumption (night) <25 W
      Operating ambient temperature range -25 ~ +60°C
      Relative humidity 0-95%
      Ingress protection IP66

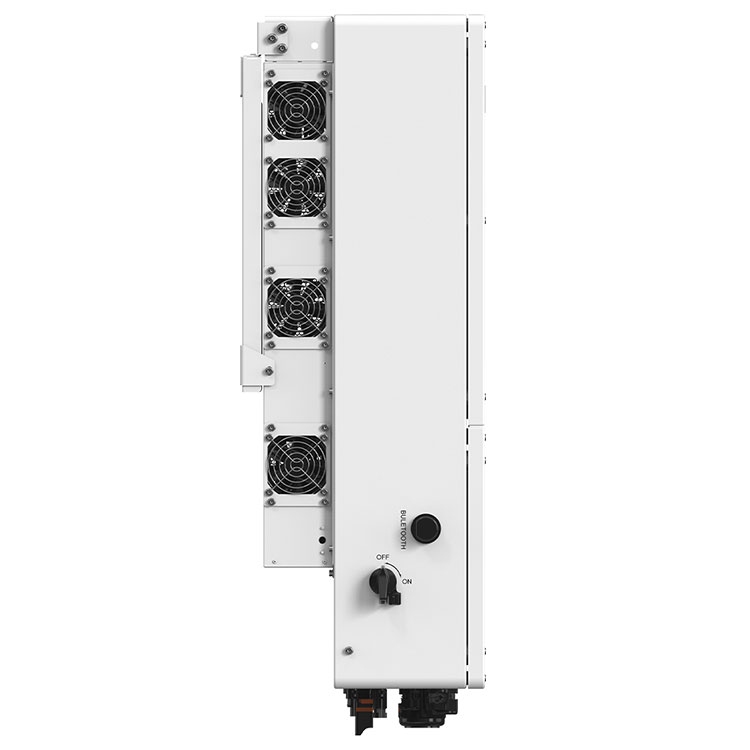

      Cooling concept Intelligent redundant fan-cooling
      Max. operation altitude 4000 m
      Grid connection standard G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
      Safety/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3

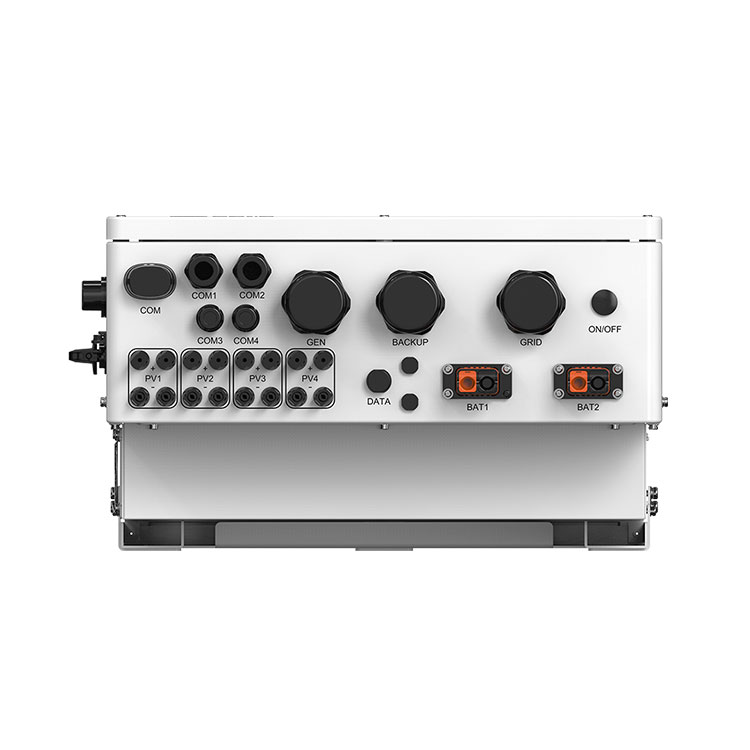

      Features
      PV connection MC4 Quick connection plug
      Battery connection Terminal connector
      AC connection Terminal Block
      Display LCD + Bluetooth + APP
      Communication CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
