Solis-EPM3-5G-PRO

Smart & strong:

Simultaneous control of 60 X Solis inverters

Realizing reactive compensation of the system

Saving & high precision:

Simultaneously monitor the operating data of the 60 X Solis inverter, saving the cost of the monitoring system

The control accuracy is up to 1%, which improves the system's spontaneous use rate

Friendly & compatible

Supports simultaneous access of Solis inverters with different powers

Monitor power generation and load consumption at all times

Models:

Solis-EPM3-5G-PRO

DATASHEET

Models	Solis-EPM3-5G-PRO
Input AC
Rated voltage	3Ф/PE, 480 V
Input voltage range	175 ~ 519 V (L-L)
Input frequency range	45~65 Hz
Communication
Inverter communication	Modbus
Communication with inverter	RS485 (Wired)
Max. communication inverter numbers	60 (1)
Max. communication distance	1000 m
Monitoring	WiFi/4G/LAN Stick (Optional)
General Data
Operating ambient temperature range	-13 °F to 140 °F (-25°C to 60°C)
Relative humidity	5%~95%
Max. operation altitude	2000 m
Ingress protection	Type 4X
Pollution degree	PD2 (Inside), PD3 (Outside)
Overvoltage category	III
Self-consumption	<6 W
Dimensions (W*H*D)	364*276*114 mm
Weight	2.1 kg (without CT, Meter)
AC connection	Quick connection terminal
Display	LCD
Smart meter	Yes
CT connection	Plug terminal
CT specification	Optional (Secondary current is 5A) (2)
Power control accuracy	1%
Features
Failsafe function	Yes
Remote upgrade	Yes
Control time	5 s

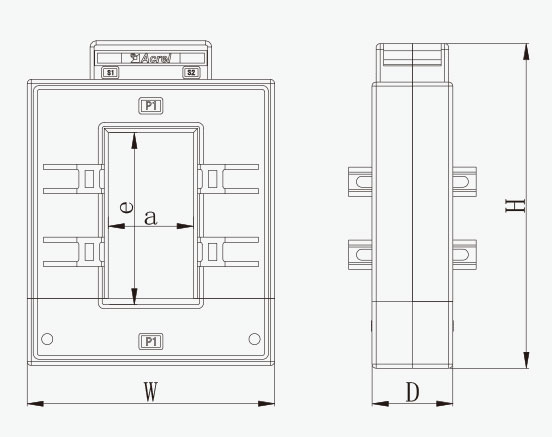

CT specification
	Specification	Dimensions (mm)			Hole size (mm)		Ratio
		W	H	D	a	e
	CT-30×20-100 A	90	114	40	22	32	100:5 A
	CT-60×40-300 A	114	140	36	42	62	300:5 A
	CT-80×40-600 A	122	162	40	42	82	600:5 A
	CT-80×40-1000 A	122	162	40	42	82	1000:5 A
	CT-160×80-2000 A	184	254	52	82	162	2000:5 A
	CT-160×80-3000 A	184	254	52	82	162	3000:5 A
